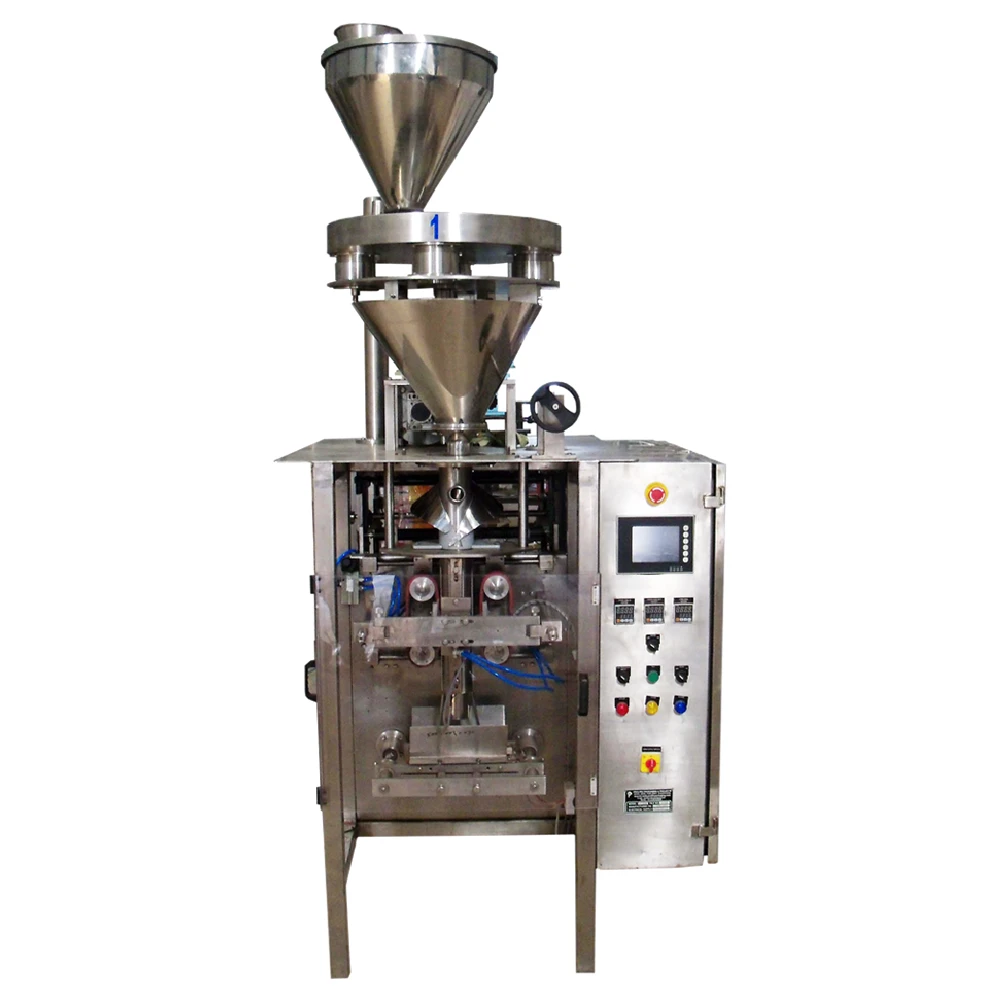

VFFS Machine Model Auto 500 VF GMP Pneumatic

Item Code : Auto 500 VF GMP Pneumatic Pneumatic Servo

Suitable for Instant Drink Powder, Free Flowing Salt, Free Flowing Soda, Detergent Powder, Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc.

  • Robust construction
  • Optimum performance
  • Longer service life
Bagger Model Standard Jumbo
Application Suitable for Instant Drink Powder, Free Flowing Salt, Free Flowing Soda, Detergent Powder, Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc Suitable for Instant Drink Powder, Free Flowing Salt, Free Flowing Soda, Detergent Powder, Grains, Pulses, Namkeen, Fryums, Peanuts, Chana, Dry Fruits, Sugar, Confectionery, Whole Spices, Crop Seeds, Veg Seeds, Fasteners etc
Fill Weight Range 15 Gram to 1000 Gram 100 Gram to 5000Gram
Pouch Size 70mm W x 75mm H Minimum 230mm W x 350mm H Maximum 100mm W x 100mm H Minimum 350mm W x 500mm H Maximum
Film Width 160mm Minimum 500mm Maximum 220mm Minimum 730mm Maximum
Output Up to 3000 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills. Up to 2400 Pouch per Hour or more achievable based on product density, shape, fill weight, film quality and operator skills.
Pouch Type Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional) Pillow Type Centre Seal (Standard) Pillow Type Centre Seal with Side Gusset (Optional)

Approximate Dimensions

Parameter Standard Jumbo
Bagger Width 800 mm 1100 mm
Bagger Length 1350 mm 1500 mm
Bagger Height 1650 mm 2000 mm
Approximate Weight 700 Kg 1200 Kg
Packaging Film All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film All Heat Sealable Laminate, Co-extruded LLDPE-LDPE Film
Power Rating - Bagger 3 Phase, 415 V AC, 50 Hz 3 Phase, 415 V AC, 50 Hz
Dry Compressed Air ~250 LPM @ 6.0 Kg/Cm²g ~300 LPM @ 7.0 Kg/Cm²g
